Specifications
Compliant to AS1428.1-2009, Design for Access and Mobility .
CPTED (Crime Prevention Through Environmental Design) principles apply .
Pre-cut colorbond custom orb roof cladding - XRW grade.
Opaque polycarbonate light panels over each cubicle.

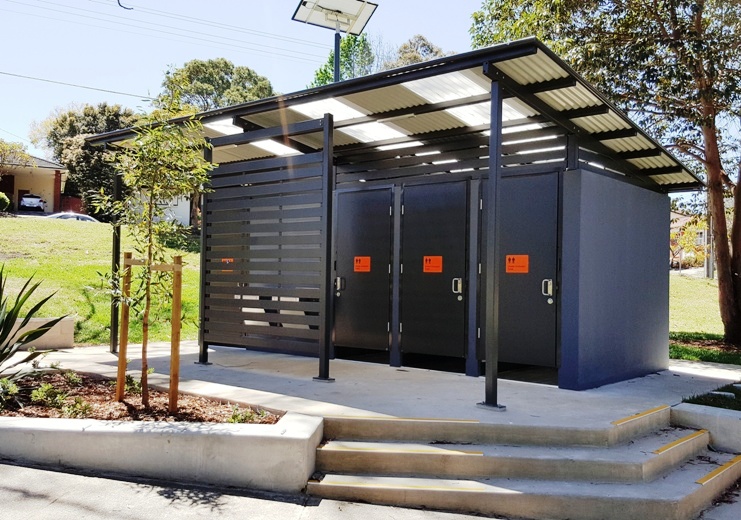

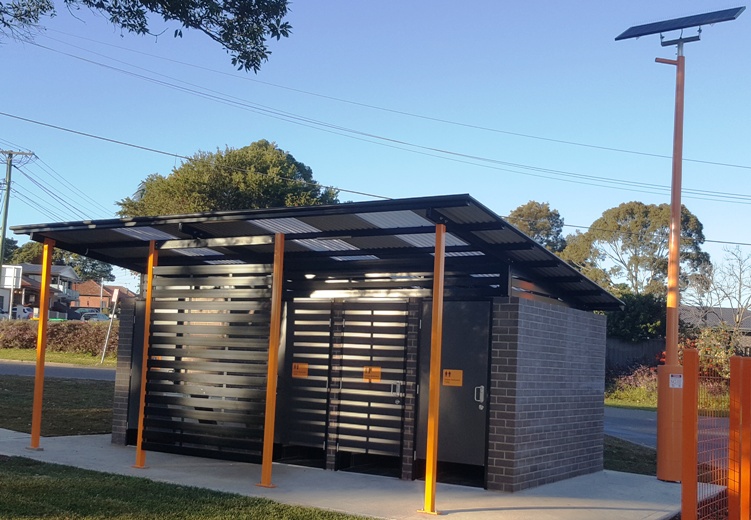

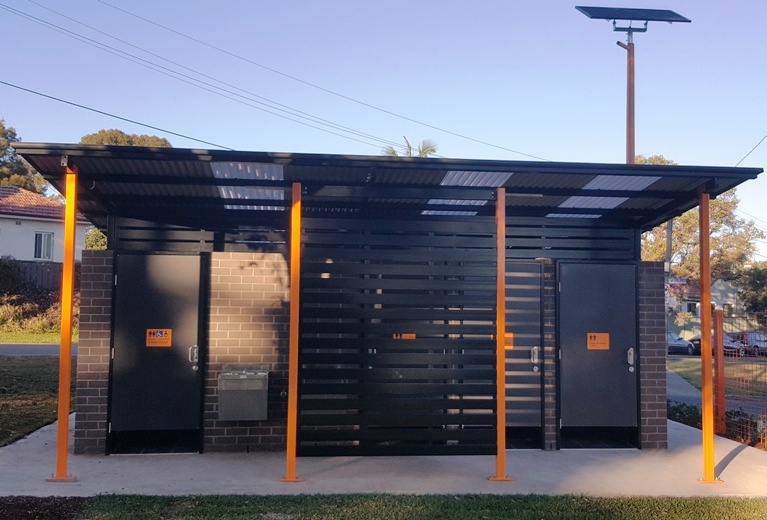

Rendered Blockwork or Face Brick walls.
Steel - Hot dipped galvanised and powder coated finish.
Aluminium slats or perforated sheet above walls for cross ventilation.
Class 4 galvanised fixings through out.
Stainless steel basins with timed lever taps for disabled compliance.
Stainless steel disabled compliant pans with fully shrouded pipework.
Padded back rests to disabled pans.
Wall mounted flush button with half flush control and in-duct cisterns.
Stainless steel shelf by basin in disabled cubicles.
Lockable dual toilet roll holders.
Visual and tactile signage.
Disabled rails to cubicles and ambulant rails to ambulant cubicles.
Door hardware (automatic closer , indicator latch, pull handle, push plate).
Deadlock to service duct door .
Footing design and setout plan.
Designed for maximum Ultimate Wind Speed of 50m/s (N3 Category , Region B1) (Standard).
BA drawings and Structural Certification.
10 year structural warranty .
Options
Fold down baby change table.
Fold down carers seat to disabled cubicle.
Additional basins and taps.
Upgrade basins to Knee Operated with fully shrouded pipework.
Urinals and showers.
Storage rooms
Internal and External cladding options include; Face brick outside with rendered block inside, Rendered block inside and outside, Face brick inside and outside.
Cyclonic wind loading.
